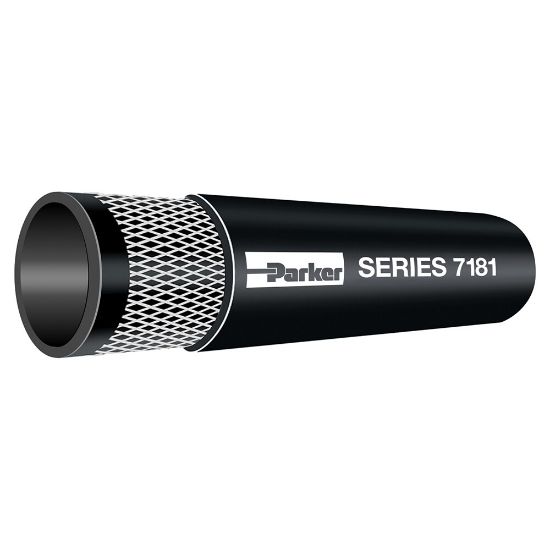

7181-311 - Heavy Duty Heater Hose, Series 7181

Heavy Duty Heater Hose is designed for use in heater and radiator systems in vehicles and industrial equipment in applications to 257°F and 65 psi, Series 7181

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	617 in stock

SKU 7181-311

$1.76/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	65
Hose I.D. (inch)	5/16	Standard Pack Qty (ft)	700
Division	Hose Products Division	Application	Specialty
Media	Coolants	Maximum Operating Pressure	50 psi
Maximum Operating Temperature	257 °F	Minimum Operating Temperature	-40 °F
Specifications Met	SAE J20R3EC, Class D2	Weight	0.27 kg/m
Outside Diameter	15 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	5/16 inch	Compatible Fitting	n/a
Minimum Bend Radius	5 inch	Hose Inner Tube Material	Black
Hose Reinforcement Material	2 Plies of Textile	Cover Color	Black
Package Type	Reel
