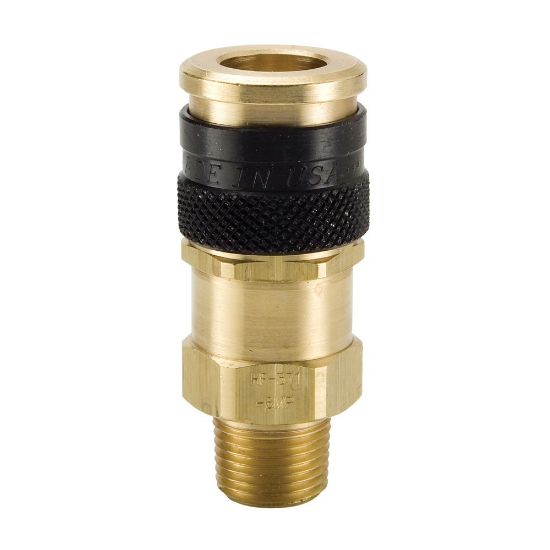

HF-251-6MP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: HF-251-6MP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-251-6MP
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:

5 in stock

Kansas City, KS

Partner Available:

3 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HF-251-6MP

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Type	NPTF	Hose I.D. (inch)	na
Body Size (inch)	1/4	Connection Thread Size (inch)	3/8 - 18
Thread Style	Male	Coupling Half	Coupler
Lock Type	Locking balls	Plating Type	na
Media	Low pressure fluids and compressed air	Minimum Operating Temperature	-40
Sleeve Type	Push to connect	Application	Pneumatic
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Maximum Operating Pressure	300
Body Material	Brass	Valve Type	Tubular
Maximum Operating Temperature	250	Division	Quick Coupling Division
Seal Material	Nitrile
