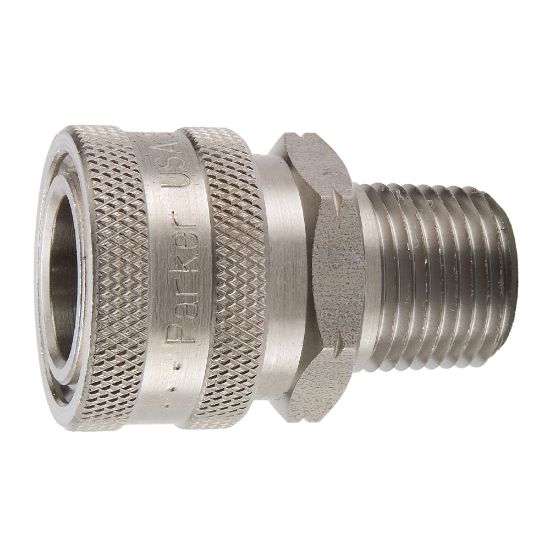

SST-8M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU SST-8M

$331.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Body Size (inch)	1	Maximum Operating Pressure	1700
Coupling Half	Female Coupler	Connection Thread Size (inch)	1 - 11 1/2
Body Material	303 Stainless Steel	Product Type	Push to Connect
Hex Size	1.75 inch	Minimum Operating Temperature	-40 °F
Application	Hydraulics	Flow Rate	50 Gal/min
Dimensional Weight	0.6232014388489209 lb	Body Material	Stainless Steel
Valve Type	Unvalved	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
