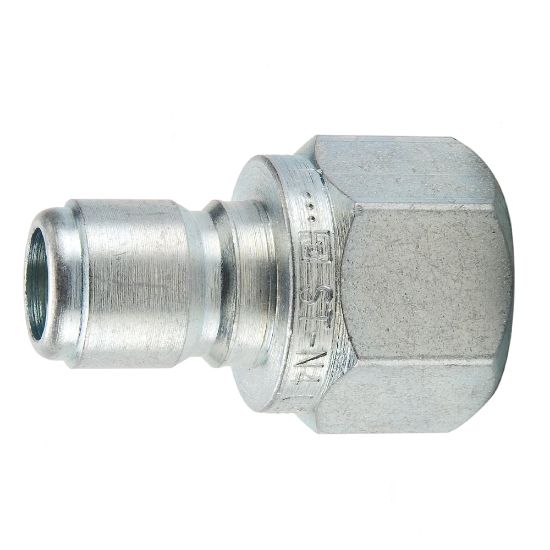

ST-N4 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 29 days
Partner Available:	54 in stock

SKU ST-N4

$17.21/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Connection Thread Size (inch)	1/2 - 14	Body Material	Steel
Coupling Half	Male Nipple	Connection Type	Female NPTF
Maximum Operating Pressure	2700	Plating Type	Zinc with Clear Trivalent Chromate
Minimum Operating Temperature	-40 °F	Hex Size	1.13 inch
Application	High Flow	Flow Rate	12 Gal/min
Dimensional Weight	0.02670863309352518 lb	Body Material	Steel
Division	Quick Coupling Division	Valve Type	Unvalved
Seal Material	n/a	Maximum Operating Temperature	250 °F
Product Type	Push to Connect
