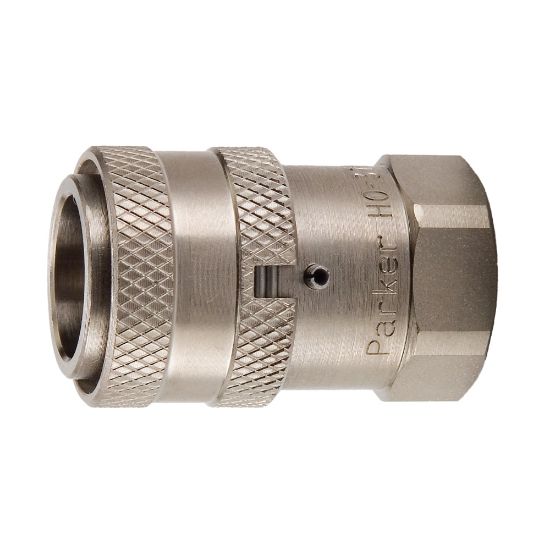

HO-371-6FP - High Pressure, High Flow, Steel Quick Couplings with Sleeve Lock - HO Series

Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	6 in stock

SKU HO-371-6FP

$211.41/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	3/8 - 18
Maximum Operating Pressure	15000.0	Connection Type	Female NPTF
Coupling Half	Female Coupler	Seal Material	Nitrile with PTFE backup
Body Size	3/8 inch	Maximum Operating Temperature	250.0 °F
Division	Quick Coupling Division	Minimum Operating Temperature	-40.0 °F
Hex Size	0.94 inch	Product Type	Manual Connect
Plating Type	Electroless nickel	Application	Hydraulic, high pressure, high flow
Flow Rate	6.0 Gal/min	Valve Type	Unvalved
Body Material	Steel
