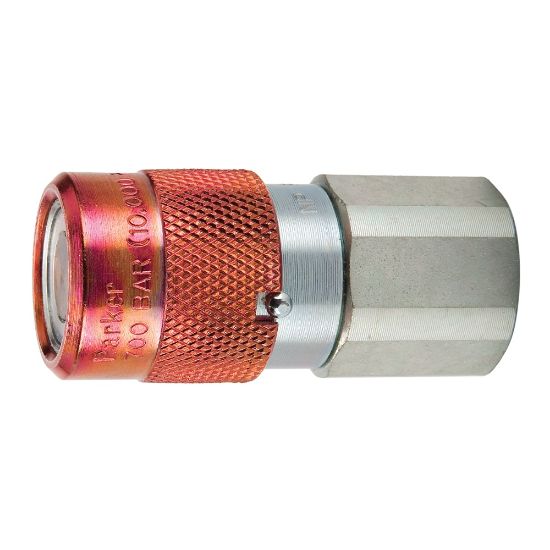

FH-371-6FP - High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 5 days
Partner Available:	37 in stock

SKU FH-371-6FP

$220.37/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	3/8 - 18
Connection Type	Female NPTF	Body Size	3/8 inch
Coupling Half	Female Coupler	Plating Type	Zinc with Clear Trivalent Chromate, Red Finish on Sleeve
Minimum Operating Temperature	-40 °F	Hex Size	1.12 inch
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Product Type	Push to Connect
Body Material	Steel	Valve Type	Non-spill
Flow Rate	6 Gal/min	Application	High Pressure Hydraulics
Dimensional Weight	0.05341726618705036 lb	Specifications Met	HTMA
Maximum Operating Pressure	10000 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
