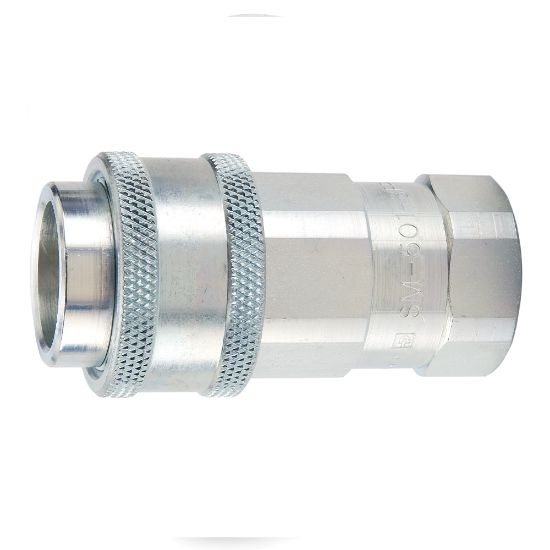

SM-251-4FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Name: SM-251-4FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series
SKU: SM-251-4FP
Price: 40.64 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

32 in stock

TOPEKA, KS	10
Kansas City, KS	9
WICHITA, KS	7
Springfield, MO	6

Partner Available:

245 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SM-251-4FP

$40.64/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3 GAL/MIN
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Body Size (inch)	1/4	Maximum Operating Pressure	6000 PSI
Connection Type	Female NPTF	Hex Size	0.75
Plating Type	Zinc with Clear Trivalent Chromate	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.02670863309352518 lb	Application	General Purpose
Body Material	Steel	Division	Quick Coupling Division
Valve Type	Poppet	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Product Type	Manual Connect

Customers who bought this item also bought

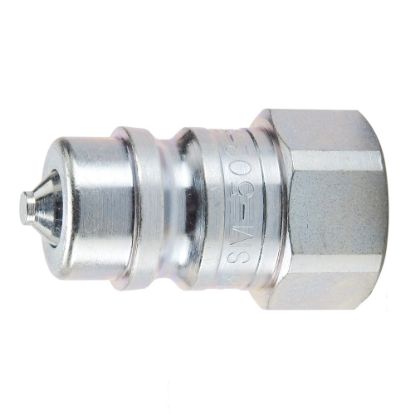

SM-252-4FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series
