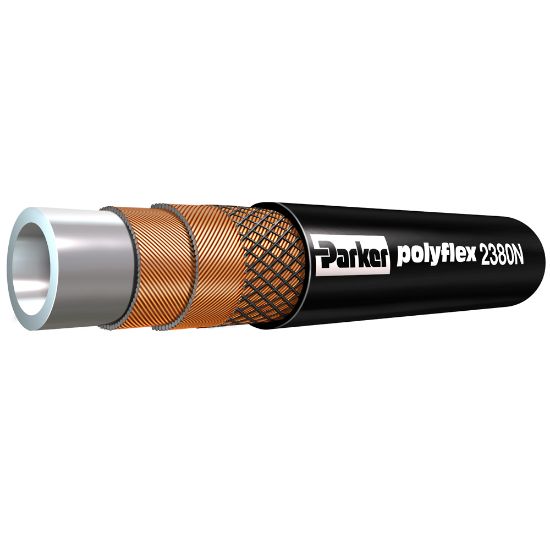

2380N-04V00 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	2298 in stock

SKU 2380N-04V00

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Black	Maximum Working Pressure (psi)	10,150
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire	Minimum Bend Radius	2-3/4 inch
Minimum Operating Temperature	-40 °F	Cover Material	Polyurethane
Maximum Operating Temperature	100 °C	Size	-4
Compatible Fitting	8X Series	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Hose Inner Tube Material	Polyamide 12
Weight	0.27 kg/m	Application	Portable Equipment
Specifications Met	n/a	Inside Diameter	1/4 inch
Outside Diameter	13.3 mm	Maximum Operating Pressure	700 bar
