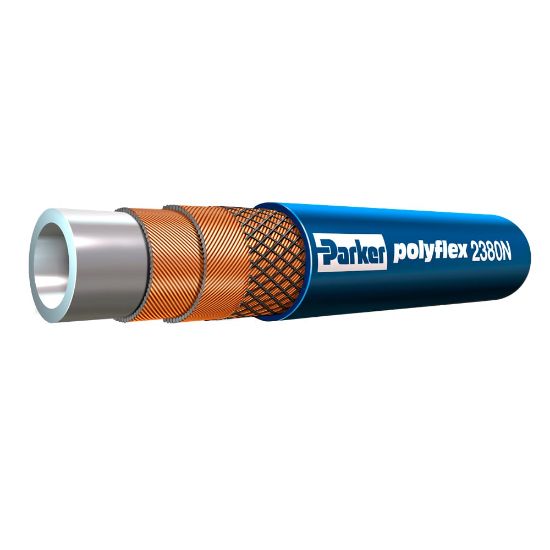

2380N-04V02 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	1051 in stock

SKU 2380N-04V02

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Blue	Maximum Working Pressure (psi)	10,150
Inside Diameter	1/4 inch	Weight	0.27 kg/m
Maximum Operating Pressure	70 MPa	Outside Diameter	0.520 inch
Minimum Bend Radius	2-3/4 inch	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire	Specifications Met	n/a
Application	Portable Equipment	Design Factor	4:1
Media	Petroleum Hydraulic Fluids	Cover Material	Polyurethane
Size	-4	Hose Inner Tube Material	Polyamide 12
Compatible Fitting	8X Series	Maximum Operating Temperature	212 °F
