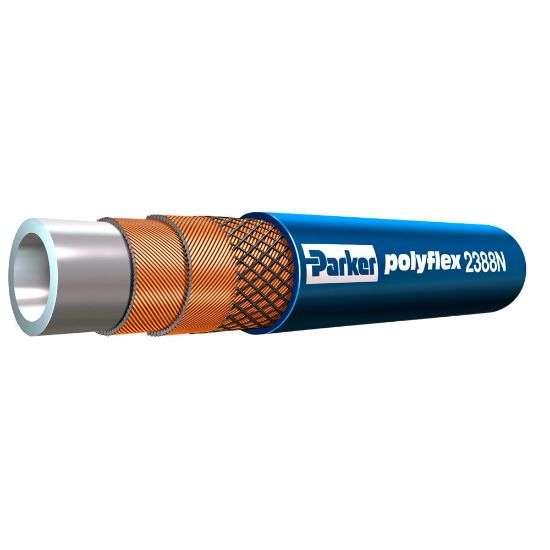

2388N-08V12 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	21 in stock

SKU 2388N-08V12

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Color	Blue	Maximum Working Pressure (psi)	15,950
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire	Minimum Bend Radius	4-3/4 inch
Specifications Met	DIN 1829-2	Minimum Operating Temperature	-40 °C
Application	Oil & Gas Hydraulic Systems	Design Factor	2.5:1
Media	Petroleum Hydraulic Fluids	Cover Material	Polyurethane
Size	-8	Hose Inner Tube Material	Polyamide 12
Maximum Operating Temperature	212 °F	Compatible Fitting	BS Series
Inside Diameter	12.7 mm	Weight	0.54 lb/ft
Outside Diameter	0.910 inch	Maximum Operating Pressure	110 MPa
