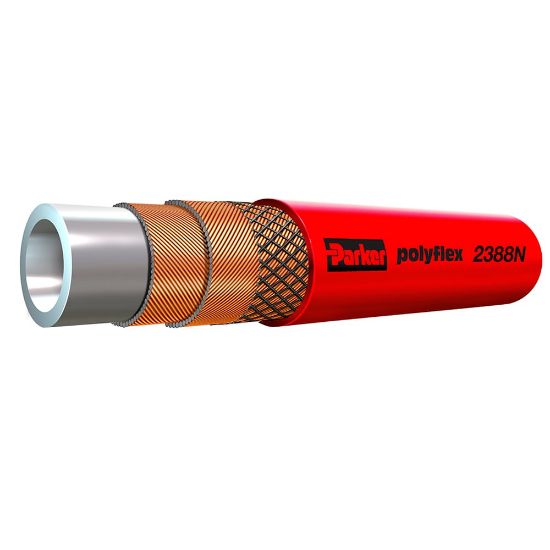

2388N-08V14 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2388N-08V14

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Color	Red	Maximum Working Pressure (psi)	15,950
Inside Diameter	12.7 mm	Outside Diameter	0.910 inch
Weight	0.80 kg/m	Maximum Operating Pressure	1100 bar
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire	Minimum Bend Radius	120 mm
Specifications Met	DIN 1829-2	Minimum Operating Temperature	-40 °F
Application	Oil & Gas Hydraulic Systems	Media	Petroleum Hydraulic Fluids
Design Factor	2.5:1	Cover Material	Polyurethane
Size	-8	Maximum Operating Temperature	212 °F
Hose Inner Tube Material	Polyamide 12	Compatible Fitting	BS Series
