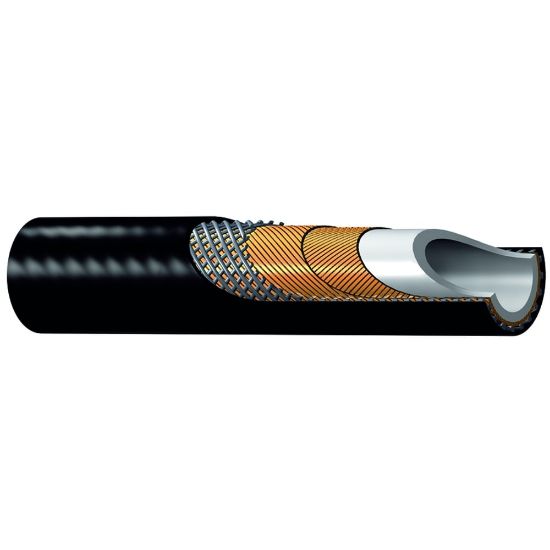

2390N-04V13 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2390N-04V13

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-4
Cover Color	Green	Maximum Operating Pressure	7,000 psi
Division	Parflex Division	Application	Subsea Control Lines
Outside Diameter	13.3 mm	Weight	0.25 kg/m
Maximum Operating Pressure	49 MPa	Inside Diameter	1/4 inch
Cover Material	Polyurethane Sea Water Resistant	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	2-3/4 inch	Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Specifications Met	ISO 13628-5	Maximum Operating Temperature	55 °C
Compatible Fitting	E3 Series	Size	-4
Hose Inner Tube Material	Polyamide (PA)	Media	Petroleum Hydraulic Fluids
Design Factor	4:1
