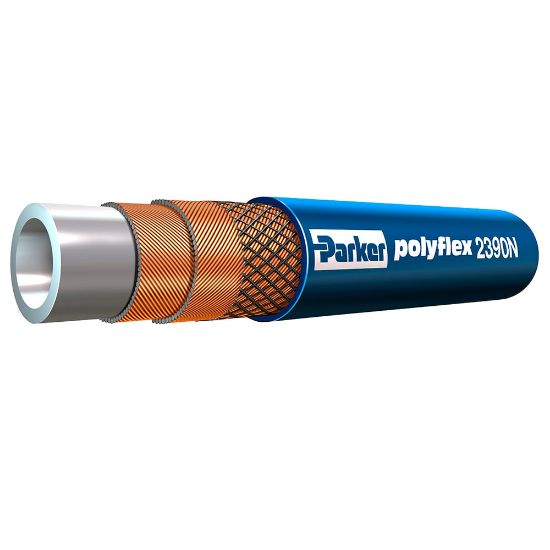

2390N-16V12 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2390N-16V12

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Cover Color	Blue	Maximum Operating Pressure	Obsolete
Cover Material	Polyurethane	Minimum Bend Radius	11 inch
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Specifications Met	ISO 13628-5	Compatible Fitting	9X Series
Maximum Operating Temperature	212 °F	Hose Inner Tube Material	Methanol Washed
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Size	-16	Division	Parflex Division
Application	Subsea BOP	Outside Diameter	1.380 inch
Inside Diameter	25.4 mm	Weight	1.17 kg/m
Maximum Operating Pressure	4060 psi
