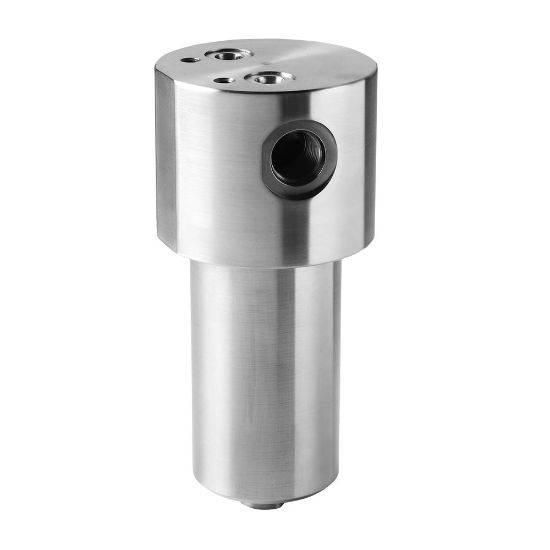

12SHP210QHVSPHP1011 - High Pressure Inline Filter 12S Series

Parker's 12S High Pressure Stainless Steel Inline Filters are ideal for heavy duty applications in aggressive environments. Allowable operating pressure of 20,000 psi/1,380 bar and capable of flows up to 25 GPM/95 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 12SHP210QHVSPHP1011

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Filter Element	10 micron microglass	Options	No bypass
Flow Rate	20 gpm (75.7 lpm)	Indicator Type	1/4” pressure ports only
Port Connection Type	9/16 High pressure autoclave	Bypass Valve Pressure Rating	N/A
Flow Rate	20.0 Gal/min	Mounting Style	Inline
Port Type	9/16 High pressure autoclave	Indicator Pressure Setting	n/a
Weight	17 lbs (7.71 kg)	Pressure Rating	1379 bar
Filter Element Type	10 micron microglass	Maximum Operating Temperature	275.0 °F
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	n/a	Seal Material	Fluorocarbon
Options	No bypass	Product Type	Hydraulic Filter
Housing Material	Stainless Steel 17-4	Compatible Element	403403
Indicator Type	1/4” pressure ports only
