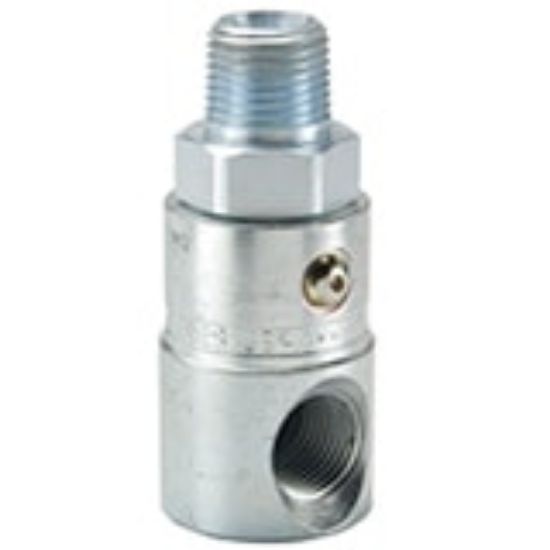

PS490102-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU PS490102-4-4

$153.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male NPTF
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Body Size (inch)	1/4
Housing Connection Style	Female NPTF	Housing Connection Thread Size (inch)	1/4 - 18 NPTF
Maximum Working Pressure (psi)	5000	Configuration	90 degree
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Body Material	Steel
Minimum Operating Temperature	-40 °F	Configuration	90 degree
Plating Type	Zinc with clear trivalent chromate
