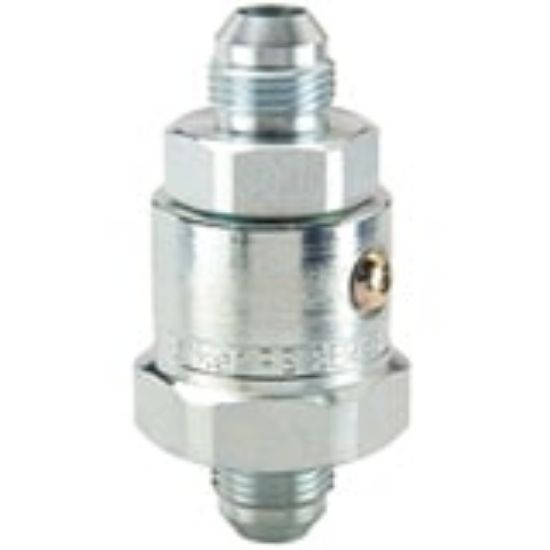

PS610303-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PS610303-6-6

$412.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male JIC 37 degree
Configuration	InLine	Body Size (inch)	3/8
Maximum Working Pressure (psi)	5000	Shaft Connection Thread Size (inch)	9/16 - 18 UNF
Seal Material	Nitrile	Housing Connection Thread Size (inch)	9/16 - 18 UNF
Housing Connection Style	Male JIC 37 degree	Division	Quick Coupling Division
Configuration	Inline	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F
