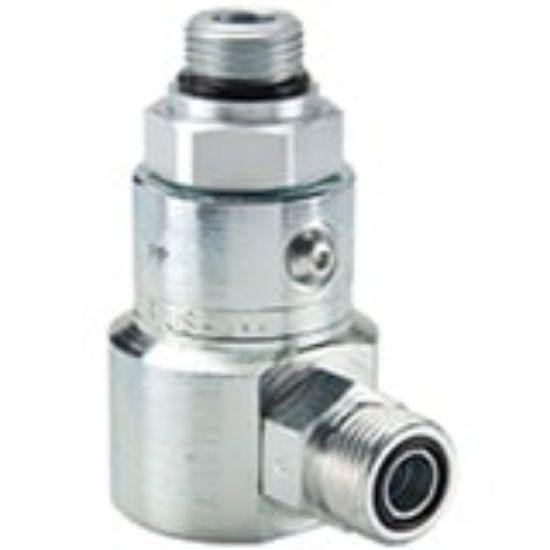

PS6905JM-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU PS6905JM-6-6

$155.57/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Housing Connection Thread Size (inch)	11/16 - 16 UN	Configuration	90 degree
Maximum Working Pressure (psi)	5000	Housing Connection Style	Male Seal-Lok
Shaft Connection Style	Male SAE O-ring Straight Thread	Shaft Connection Thread Size (inch)	9/16 - 18 UNF
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Body Material	Steel
Dimensional Weight	0.12464028776978417 lb	Configuration	90 degree
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
