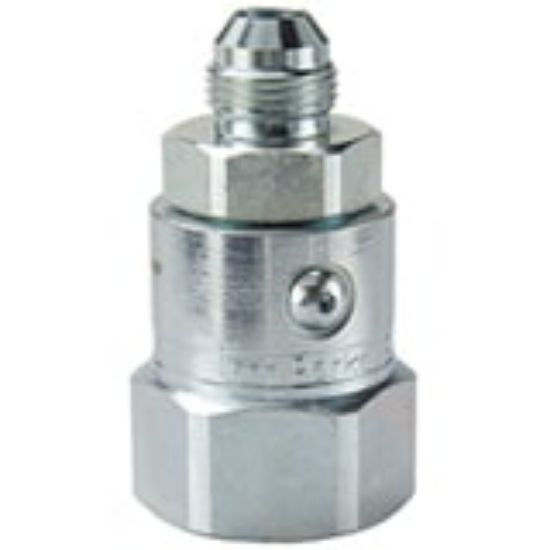

PS810306-10-10 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	4 in stock

SKU PS810306-10-10

$837.30/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male JIC 37 degree
Maximum Working Pressure (psi)	5000	Shaft Connection Thread Size (inch)	7/8 - 14 UNF
Housing Connection Style	Female JIC 37 degree	Housing Connection Thread Size (inch)	7/8 - 14 UNF
Body Size (inch)	1/2	Seal Material	Nitrile
Configuration	InLine	Body Material	Steel
Configuration	Inline	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F
