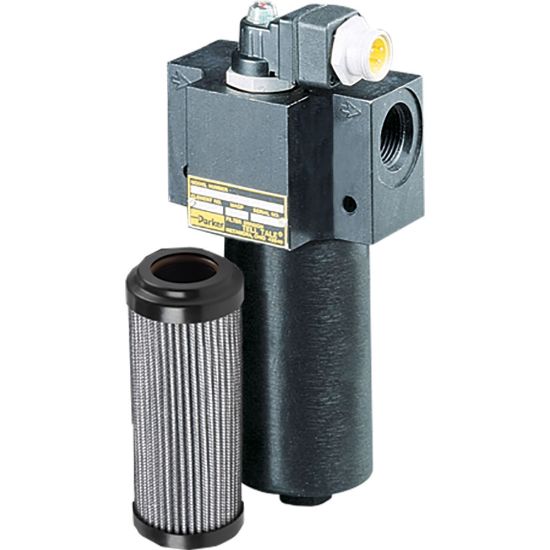

15P102QHBPKS1221 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 15P102QHBPKS1221

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Connection Type	SAE-12 ports	Options	drain port and no bypass
Flow Rate	15 GPM ( 56 LPM)	Micron Rating	02Q high collapse microglass (2000 psid)
Indicator Type	indicator pressure port only	Mounting Style	inline
Indicator Pressure Setting	50 psi	Weight	3.5 lb ( 1.6 kg)
Maximum Operating Temperature	107.0 °C	Micron Rating	02Q High Collapse Microglass (2000 psid)
Seal Material	nitrile	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	206.9 bar
Filter Element Type	cartridge	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Bypass Valve Pressure Rating	3.5 bar	Options	drain port and no bypass
Product Type	Hydraulic Filter	Flow Rate	56.0 L/min
Port Type	SAE-12 ports	Product Style	Hydraulic Filter
Indicator Type	indicator pressure port only	Compatible Element	932613Q
