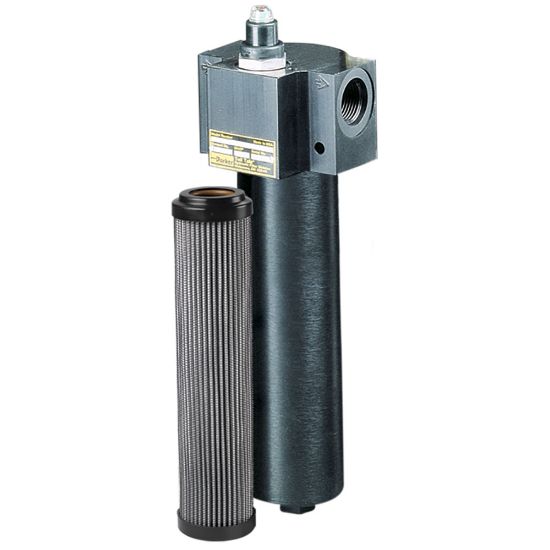

15P205QBE2KS122 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 15P205QBE2KS122

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Connection Type	SAE-12 ports	Micron Rating	05Q Microglass
Options	No bypass	Indicator Type	electrical/visual DIN 43650 style connection
Mounting Style	inline	Flow Rate	20 GPM (75 LPM)
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	206.9 bar
Filter Element Type	cartridge	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Indicator Pressure Setting	3.5 bar	Bypass Valve Pressure Rating	50.0 psid
Product Type	Hydraulic Filter	Maximum Operating Temperature	107.0 °C
Options	no bypass	Micron Rating	05Q Microglass
Seal Material	nitrile	Product Style	Hydraulic Filter
Compatible Element	931617Q	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Indicator Type	electrical/visual DIN 43650 style connection	Weight	4.6 lb ( 2.1 kg)
Flow Rate	75.0 L/min	Port Type	SAE-12 ports
