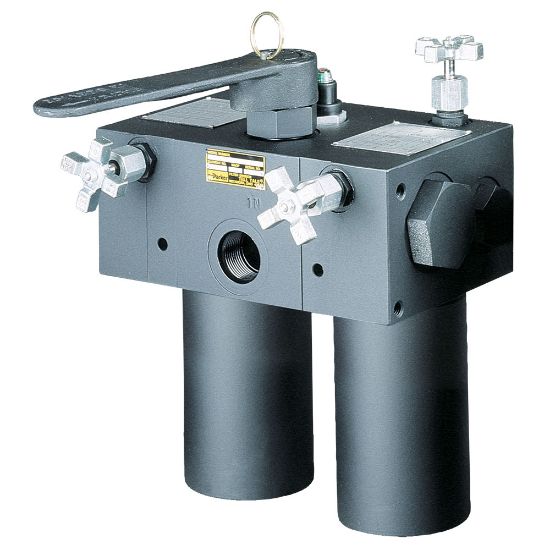

30PD110QBM2KS164 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 30PD110QBM2KS164

$3,656.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	25 gpm (95 lpm)	Micron Rating	10Q Microglass
Indicator Type	Visual automatic reset	Options	SAE-4 drain port on bowl
Port Connection Type	SAE-16 ports	Mounting Style	duplex
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Product Type	Hydraulic Filter
Pressure Rating	3000 psi	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Flow Rate	25.0 Gal/min	Port Type	SAE-16 ports
Maximum Operating Temperature	107.0 °C	Seal Material	nitrile
Micron Rating	10Q Microglass	Weight	36 lb (16.3 kg)
Product Style	Hydraulic Filter	Options	SAE-4 drain port on bowl
Filter Element Type	cartridge	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Compatible Element	932624Q	Indicator Type	visual automatic reset
Indicator Pressure Setting	50 psi	Bypass Valve Pressure Rating	3.5 bar
