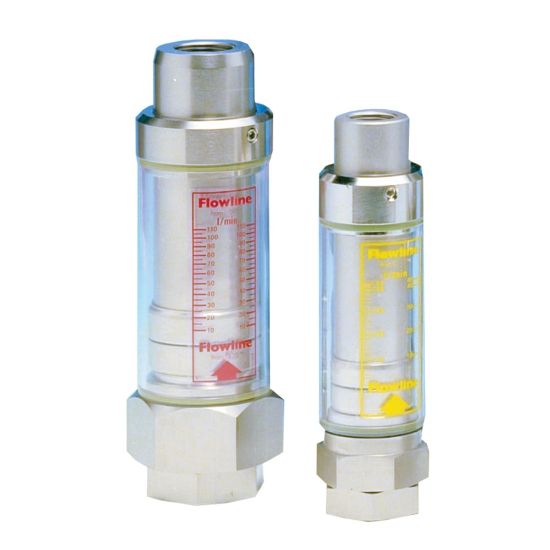

FM26132212 - High Pressure Mechanical Flowmeter - Flowline

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FM26132212

$1,108.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Stainless Steel
For Fluid Type	Oil	Flow Rate	0.5 to 4.5 l/min
Product Style	Flow Meter	Diameter	32 mm
Brand	Parker	Specifications Met	Pressure Directive
Port Type	BSP Parallel Threads	Materials of Construction	Stainless Steel
Flow Rate	0.5 to 4.5 L/min	Operating Temperature	-20 to 90 °C
Operating Pressure	5000 psi	Technology	Filtration
Accuracy	+/- 5% FSD	Product Type	Condition Monitor
Port Size	1/4 inch	Length	123 mm
Division	Hydraulic & Industrial Process Filtration Division EMEA	Height	32 mm
Width	32 mm	For Fluid Type	Oil
Seal Material	Fluoroelastomer	Body Material	Nickel Plate
Industry	Industrial & Chemical Processing	Sensing Method	Variable Orifice Flow Meter
Division	Hydraulic & Industrial Process Filtration Division EMEA

Product resources

Literature and Reference Materials

BULLETIN-High Pressure Mechanical Flowmeter - Flowline (PDF)
