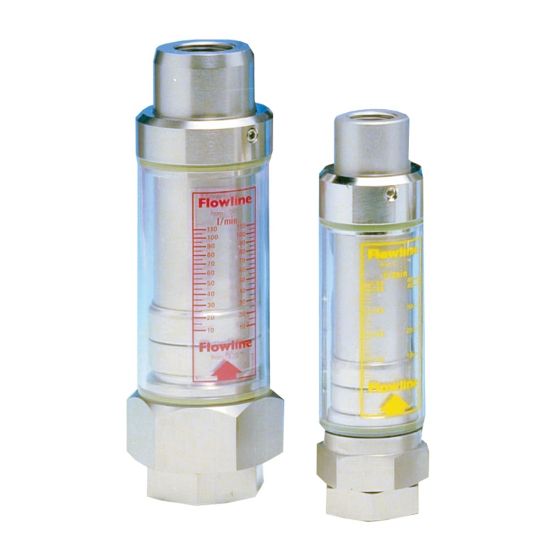

FM26322112 - High Pressure Mechanical Flowmeter - Flowline

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU FM26322112

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Brass
For Fluid Type	Oil	Flow Rate	5 to 55 l/min
Brand	Parker	Specifications Met	Pressure Directive
Diameter	58 mm	Materials of Construction	Stainless Steel
Flow Rate	5 to 55 L/min	Port Type	BSP Parallel Threads
Operating Temperature	-20 to 90 °C	Operating Pressure	350 bar
Product Type	Condition Monitor	Length	190 mm
Port Size	3/4 inch	Product Style	Flow Meter
Width	58 mm	Height	58 mm
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Oil
Technology	Filtration	Seal Material	Fluoroelastomer
Accuracy	+/- 5% FSD	Division	Hydraulic & Industrial Process Filtration Division EMEA
Body Material	Nickel Plate	Industry	Industrial & Chemical Processing
Sensing Method	Variable Orifice Flow Meter

Product resources

Literature and Reference Materials

BULLETIN-High Pressure Mechanical Flowmeter - Flowline (PDF)
