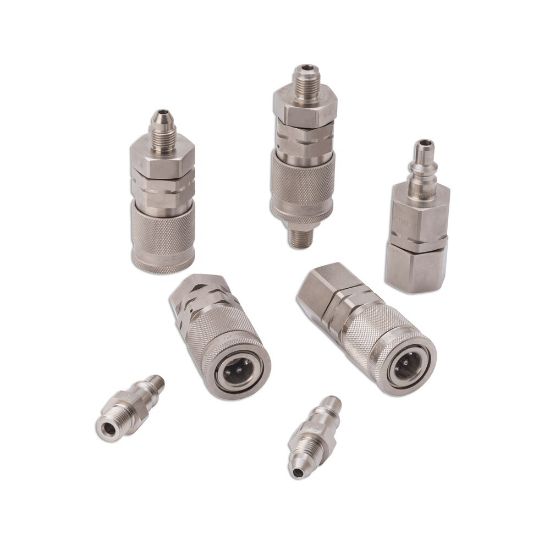

HP006-1-NMC - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU HP006-1-NMC

$371.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Size (inch)	3/8" - 18
Flow Diameter (inch)	0.24	Thread Type	Male
Coupling Half	Nipple without Check Valve	Connection Style	NPT
Hex Size	19.05 mm	Coupling Half	Nipple without Check Valve
Maximum Operating Pressure	15000 psi	Flow Diameter	0.24 inch
Overall Length	2.13 inch	Materials of Construction	Alloy Steel
Connection Type	NPT	Body Material	Alloy Steel
Connection Size	3/8"-18 inch	Division	Parflex Division
