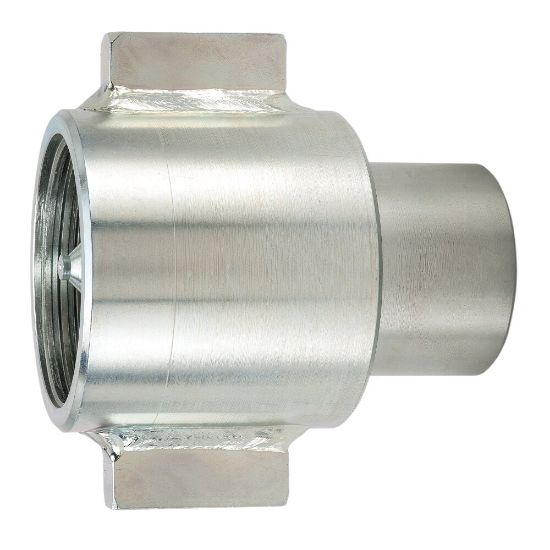

75C16-16F-DBP - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 75C16-16F-DBP

$284.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPSF
Body Size (inch)	1	Coupling Half	Female Coupler
Specifications Met	API 16D	Sleeve Type	Wing nut
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1 - 11 1/2
Dimensional Weight	0.6232014388489209 lb	Specifications Met	API
Application	High Pressure Hydraulics	Body Material	Steel
Seal Material	n/a	Division	Quick Coupling Division
Valve Type	Poppet	Maximum Operating Temperature	n/a
Hex Size	n/a inch	Minimum Operating Temperature	n/a
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Thread to Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
