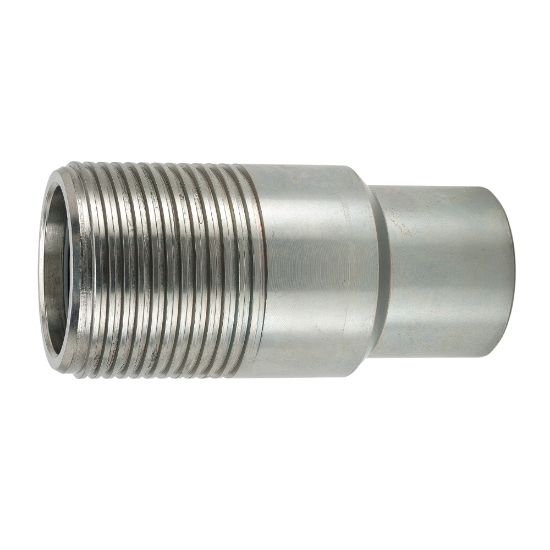

75N20-20FV - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 75N20-20FV

$291.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1 1/4 - 11 1/2
Body Size (inch)	1 1/4	Coupling Half	Male Nipple
Maximum Operating Pressure	5000	Connection Type	Female NPTF
Specifications Met	na	Sleeve Type	na
Minimum Operating Temperature	-15 °F	Hex Size	2.38 inch
Plating Type	Zinc with Clear Trivalent Chromate	Application	High Pressure Hydraulics
Valve Type	Poppet	Division	Quick Coupling Division
Body Material	Steel	Product Type	Thread to Connect
Maximum Operating Temperature	400 °F	Seal Material	Fluorocarbon
