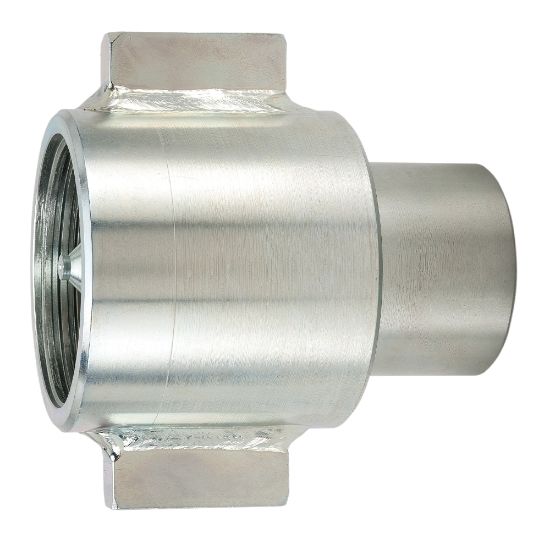

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

S75C12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU S75C12-12F

$1,994.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sleeve Type	Hex nut
Connection Type	Female NPSF	Connection Thread Size (inch)	3/4 - 14
Coupling Half	Female Coupler	Specifications Met	na
Body Size (inch)	3/4	Maximum Operating Pressure	3000
Hex Size	1.31 inch	Plating Type	na
Minimum Operating Temperature	-40 °F	Application	Hydraulic high pressure, connect under pressure
Body Material	Stainless steel	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Division	Quick Coupling Division
Seal Material	Nitrile	Product Type	Thread-to-Connect
