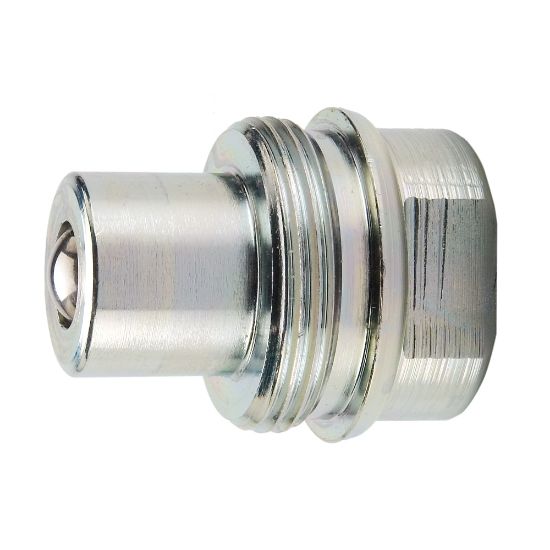

3010-2 - High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series

Name: 3010-2 - High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series
SKU: 3010-2
Price: 28.48 USD
Availability: InStock

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Manufacturer: Parker

Availability:

63 in stock

TOPEKA, KS	20
WICHITA, KS	16
Peoria, IL	7
COLUMBIA, MO	4
Kansas City, KS	4
Springfield, MO	3
Joplin, MO	3
Olivette, MO	3
Decatur, IL	3

Partner Available:

610 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 3010-2

$28.48/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Female NPTF	Connection Thread Size	1/4 - 18
Body Size	1/4 inch	Maximum Operating Temperature	230 °F
Division	Quick Coupling Division	Seal Material	Polyurethane
Product Type	Thread to Connect	Body Material	Steel
Valve Type	Ball	Flow Rate	3 Gal/min
Application	High Pressure Hydraulics	Dimensional Weight	0.01999400479616307 lb
Maximum Operating Pressure	10000 psi	Plating Type	Zinc with Clear Trivalent Chromate
Hex Size	0.88 inch	Minimum Operating Temperature	-22 °F
