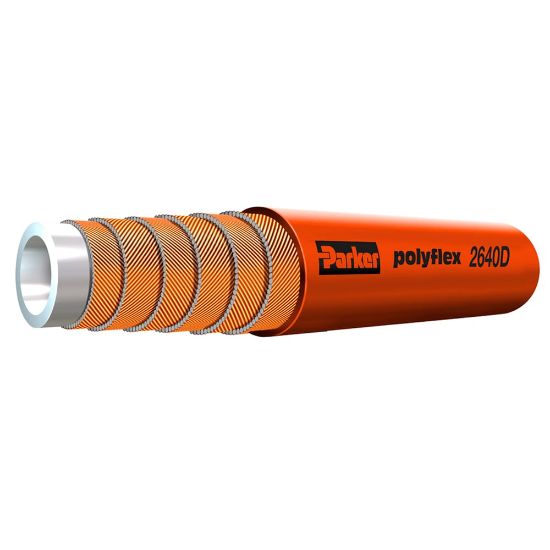

2640D-025V35 - High Pressure Water Jet Hose - 2640D

High Pressure 2640D water jet hoses handles pressures up to 40,600 psi (4,000 bar), making it ideal for water jet cutting equipment and ship washdown applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2640D-025V35

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/32
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Minimum Bend Radius	140 mm
Minimum Operating Temperature	-10 °C	Cover Material	Polyamide (PA)
Application	High Pressure Hydraulics	Specifications Met	DIN 1829-2
Design Factor	2.5:1	Hose Inner Tube Material	Polyoxymethylene (POM)
Media	Chemicals	Maximum Operating Temperature	70 °C
Compatible Fitting	2X Series	Division	Parflex Division
Inside Diameter	4 mm	Outside Diameter	12 mm
Maximum Operating Pressure	40600 psi	Weight	0.20 lb/ft

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
