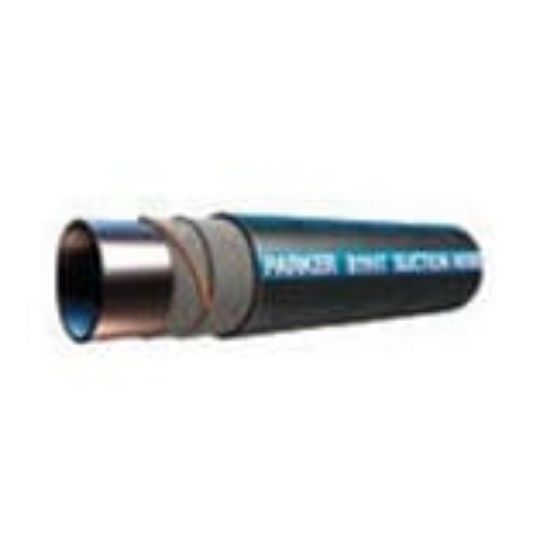

811HT-32 - High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	43 in stock

SKU 811HT-32

$61.90/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Inside Diameter	2 inch	Maximum Operating Pressure	0.7 MPa
Weight	1.26 lb/ft	Vacuum Pressure Rating	95 kPa
Outside Diameter	2.500 inch	Nominal Hose Inside Diameter	50 mm
Division	Hose Products Division	Media	Petroleum Hydraulic Fluids
Hose Cover Type	Standard Cover	Design Factor	4:1
Compatible Fitting	43 Series	Maximum Operating Temperature	125 °C
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Specifications Met	MSHA	Application	Petroleum Base Hydraulic Fluids
Minimum Bend Radius	152 mm	Minimum Operating Temperature	-46 °C
Cover Material	MSHA Approved

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
