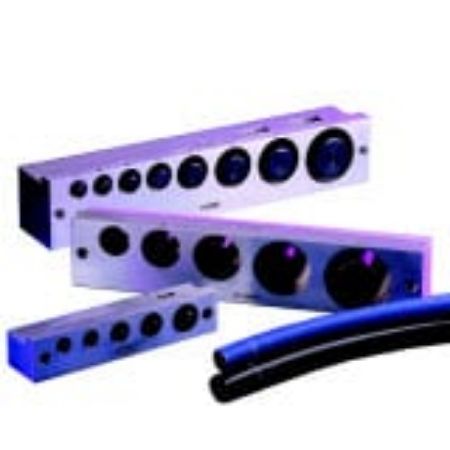

Hose Insertion Depth Blocks

Parker's Hose Insertion Depth Blocks are a way to quickly and easily mark proper hose insertion depth for guaranteed validity each and every time.  Estimating the depth of the hose by eye can be extremely dangerous.  If the hose is not inserted into the shell of the fitting per the recommended length, the fitting can blow off.

Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
• Automotive

Features/Benefits:
• Ensures accuracy and safety
• Increases productivity
• Leads to leak-free hose assemblies

Applications:
•  Verifies insertion depth on all hoses from Parker Hose Products Division and the Parflex Division

Compatible Fittings:
• 26 series -4 through -32
• 43 series -4 through -32
• 54 series -4 through -6
• 55/58 series -2 through -16
• 56 series -3 through -16
• 55 series -4 through -32
• 58H series -12 through -16
• 70 series -6 through -20
• 71 series -6 through -32
• 73 series -12 through -32
• 77 series -8 through -32
• 78 series -12 through -32
• 79 series -12 through -24
• 91/91N series -3 through -20
• 93N series -6 through -32
• 94/95 series -4 through -16
• CY/SF series -2 through -3
• MS series -5 through -6
• HY series -4 through -16
