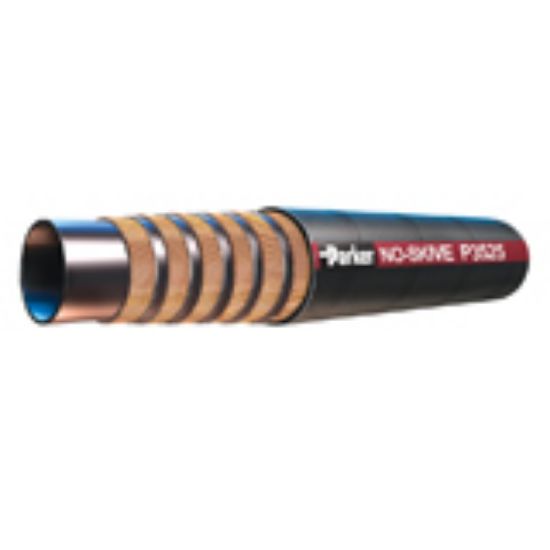

P3525-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU P3525-32

$389.24/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Cover Type	SuperTough
Maximum Working Pressure (psi)	5000	Division	Hose Products Division
Application	Petroleum Base Hydraulic Fluids	Media	Lubricants
Maximum Operating Pressure	35 MPa	Maximum Operating Temperature	70 °C (Cement delivery)
Minimum Operating Temperature	-40 °F Water & Water/Oil Emulsion & Water/Glycol Hydraulic Fluids	Weight	5 lb/ft
Outside Diameter	2.820 inch	Size	-32
Cover Material	Synthetic Rubber Abrasion Resistant	Inside Diameter	2 inch
Compatible Fitting	S6 Series	Minimum Bend Radius	25 inch
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Nominal Hose Inside Diameter	51 mm
