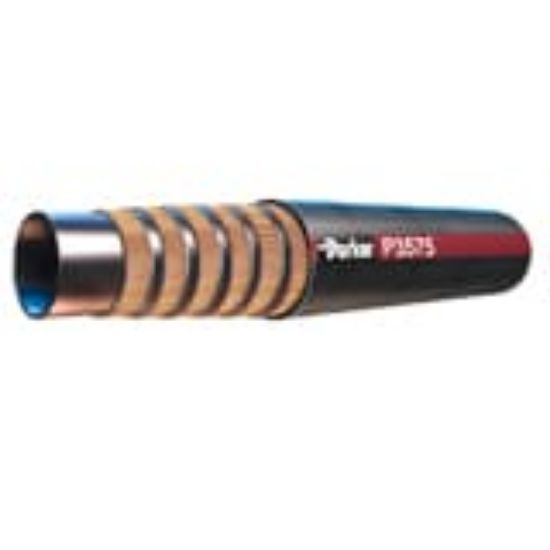

P3575-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU P3575-32

$467.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	5000
Hose Cover Type	Extremely thick SuperTough	Division	Hose Products Division
Application	Mud Service	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	35 MPa	Maximum Operating Temperature	70 °C (Water and water/oil emulsion and water/glycol hydraulic fluids)
Minimum Operating Temperature	-40 °C (Petroleum Based Hydraulic Fluids)	Weight	7.89 kg/m
Outside Diameter	2.950 inch	Size	-32
Cover Material	Synthetic Rubber Abrasion Resistant	Inside Diameter	51 mm
Compatible Fitting	S6 Series	Minimum Bend Radius	630 mm
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Nominal Hose Inside Diameter	51 mm
