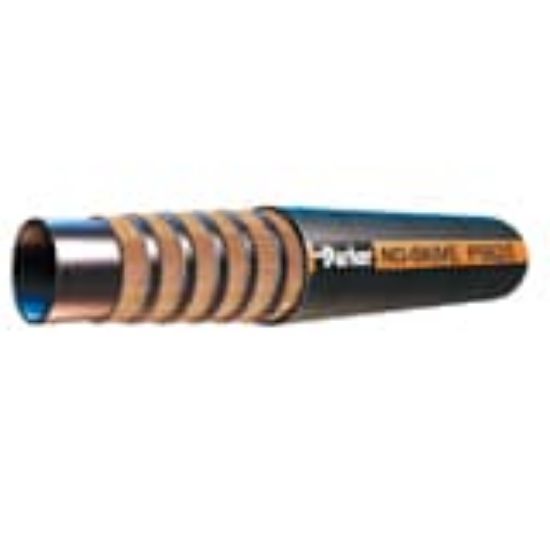

P5625-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU P5625-32

$485.03/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	8000
Hose Cover Type	SuperTough	Division	Hose Products Division
Compatible Fitting	S6 Series	Maximum Operating Temperature	70 °F
Size	-32	Outside Diameter	71.6 mm
Nominal Hose Inside Diameter	51 mm	Weight	5 lb/ft
Maximum Operating Pressure	56 MPa	Inside Diameter	2 inch
Minimum Bend Radius	630 mm	Minimum Operating Temperature	-20 °F
Cover Material	Synthetic Rubber Abrasion Resistant	Application	Cement Slurry
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Hose Inner Tube Material	Synthetic Rubber
Media	Petroleum Hydraulic Fluids
