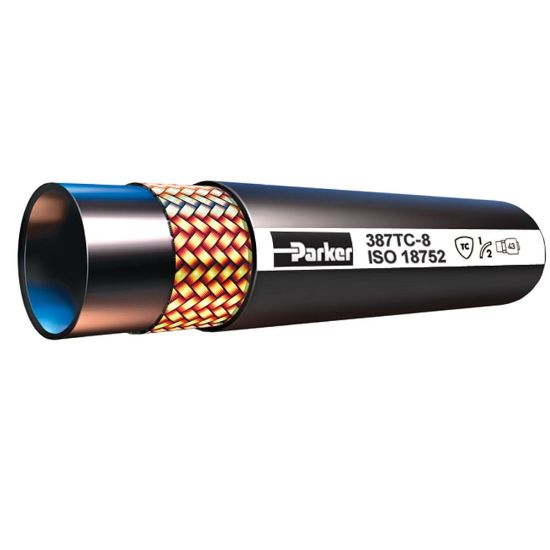

387-8 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	2950 in stock

SKU 387-8

$7.68/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Hose Cover Type	Standard Cover	Specifications Met	ISO 18752, Type AC
Hose Reinforcement Material	1 Braid of Steel Wire	Application	Lubricating Oils
Outside Diameter	0.820 inch	Maximum Operating Pressure	3000 psi
Nominal Hose Inside Diameter	12 mm	Hose Cover Type	Standard Cover
Media	Lubricants	Minimum Bend Radius	90 mm
Minimum Operating Temperature	-40 °C	Cover Material	Synthetic Rubber
Division	Hose Products Division	Compatible Fitting	43 Series
Size	-8	Maximum Operating Temperature	212 °F
Hose Inner Tube Material	Synthetic Rubber	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Weight	0.29 lb/ft	Inside Diameter	12.5 mm
