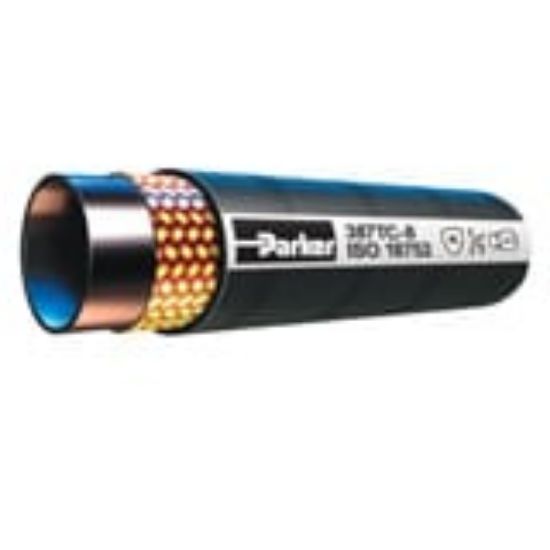

387ST-8 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	2031 in stock

SKU 387ST-8

$11.76/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Hose Cover Type	SuperTough	Weight	0.29 lb/ft
Application	Lubricating Oils	Specifications Met	ISO 18752, Type AC
Outside Diameter	0.820 inch	Maximum Operating Pressure	3000 psi
Nominal Hose Inside Diameter	12 mm	Inside Diameter	12.5 mm
Hose Cover Type	SuperTough	Cover Material	Synthetic Rubber Super Abrasion Resistant
Minimum Operating Temperature	-40 °C	Minimum Bend Radius	90 mm
Hose Reinforcement Material	1 Braid of Steel Wire	Maximum Operating Temperature	257 °F
Compatible Fitting	43 Series	Size	-8
Division	Hose Products Division	Media	Petroleum Hydraulic Fluids
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Hose Inner Tube Material	Synthetic Rubber
