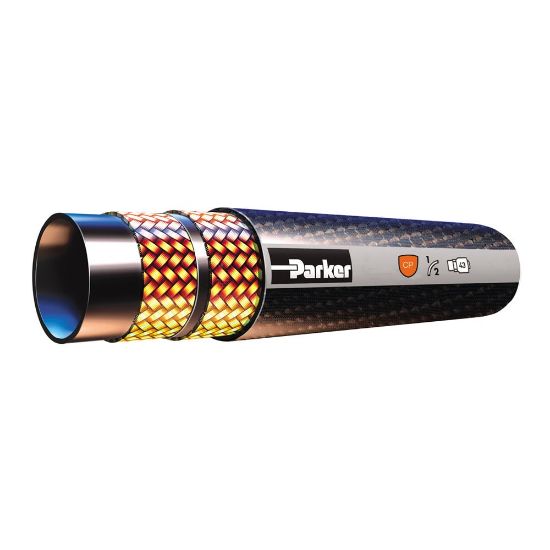

487CP-20 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 211 days
Partner Available:	Backordered

SKU 487CP-20

$62.72/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	Critical Protection	Division	Hose Products Division
Application	Lubricating Oils	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	280 bar	Maximum Operating Temperature	257 °F
Minimum Operating Temperature	-40 °C	Specifications Met	ISO 18752
Weight	1.74 lb/ft	Outside Diameter	1.82 inch
Size	-20	Cover Material	Proprietary Critical Protection Cover
Inside Diameter	1 1/4 inch	Compatible Fitting	43 Series
Minimum Bend Radius	210 mm	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	4 spiral steel wire	Cover Color	Black
