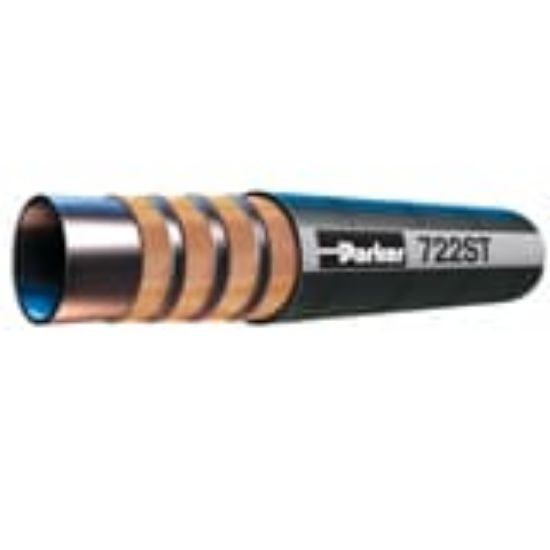

722-8 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 722 Hose

With 4,000 PSI constant working pressure hoses, half SAE bend radius, and three cover options, Parker’s 722 GlobalCore hose delivers maximum performance and efficiency.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 722-8

$16.98/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Hose Cover Type	Standard Cover	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	4 Spirals	Minimum Bend Radius	3-1/2 inch
Hose Cover Type	Standard Cover	Cover Material	Synthetic Rubber
Outside Diameter	0.890 inch	Maximum Operating Pressure	28 MPa
Weight	0.54 lb/ft	Nominal Hose Inside Diameter	12 mm
Inside Diameter	1/2 inch	Specifications Met	ISO 18752
Application	Lubricating Oils	Division	Hose Products Division
Media	Lubricants (Oils)	Hose Inner Tube Material	Synthetic Rubber
Compatible Fitting	43 Series	Maximum Operating Temperature	212 °F
