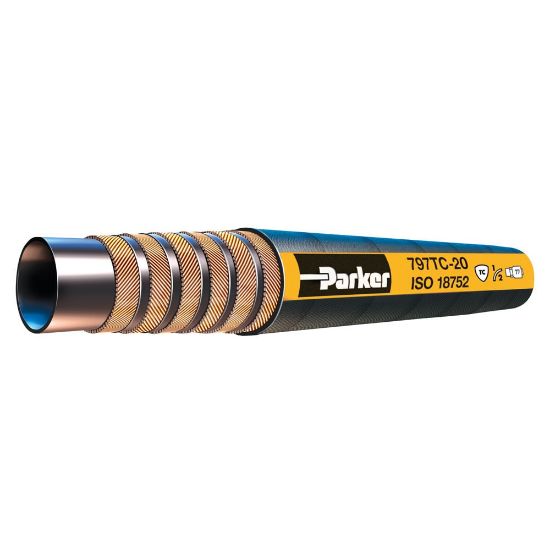

797-20 - Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	467 in stock

SKU 797-20

$107.13/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	Standard	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Minimum Bend Radius	8-3/4 inch
Cover Material	Synthetic Rubber	Weight	1.95 lb/ft
Maximum Operating Pressure	42 MPa	Outside Diameter	44.9 mm
Nominal Hose Inside Diameter	31 mm	Inside Diameter	1-1/4 inch
Specifications Met	ISO 18752, Type BC	Application	Lubricating Oils
Division	Hose Products Division	Media	Petroleum Hydraulic Fluids
Hose Inner Tube Material	Proprietary Synthetic Rubber Compound	Compatible Fitting	77 Series
Maximum Operating Temperature	212 °F	Size	-20
