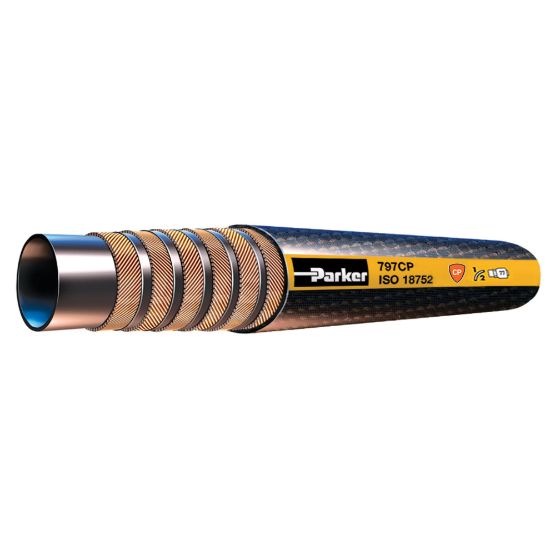

797CP-20 - Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 797CP-20

$131.31/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	Critical Protection	Nominal Hose Inside Diameter	1 1/4 inch
Specifications Met	MSHA TC, ST & CP covers only	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Application	Lubricating Oils
Minimum Bend Radius	8.75 inch	Weight	2.89 kg/m
Outside Diameter	44.9 mm	Maximum Operating Pressure	420 bar
Inside Diameter	31.5 mm	Hose Inner Tube Material	Proprietary Synthetic Rubber Compound
Compatible Fitting	77 Series	Maximum Operating Temperature	125 °C
Division	Hose Products Division	Size	-20
Cover Material	Synthetic Rubber Abrasion Resistant	Media	Lubricants
