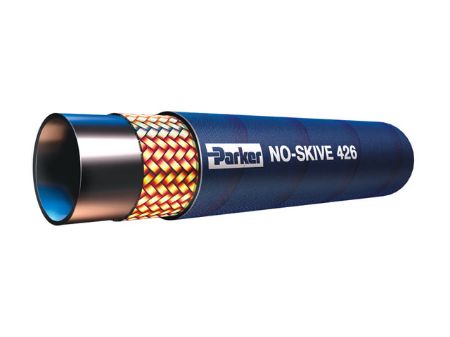

Hydraulic Industry Standard High-Temperature Hose 375-2750 PSI – 426 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications. The 426 hose is designed, built, and tested to meet SAE J517 100R1AT / SAE J1942 specifications. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Material Handling

Features/Benefits:

• Meets SAE J517 100R1AT / SAE J1942 specifications

• The distinctive blue cover, MSHA accepted, indicates high temperature rating

• Compatible with temperatures up to 302 ͦF

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Nominal Hose Inside Diameter	Inside Diameter	Maximum Operating Pressure	Outside Diameter	Weight	Division	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Media	Minimum Operating Temperature	Minimum Bend Radius	Cover Material	Application	Specifications Met	Hose Reinforcement Material	Material	Inner Diameter	Working Pressure	Pkg Qty/UOM	Pkg Qty	Parker Group	Inch/Metric	Parker Division	Inner Diameter Inch/mm	Inner Diameter	Material	Working Pressure Range	Application	Hose Pressure Range	Hose Category	Series	Distinct Properties
426-20	Backordered	630 in stock	$46.24/foot	FT	FT	-20	31 mm	1-1/4 inch	4.3 MPa	45 mm	1.40 kg/m	Hose Products Division	43 Series	302 °F	PKR® Rubber	Petroleum Hydraulic Fluids	-46 °C	16-1/2 inch	MSHA Approved	Petroleum Base Hydraulic Fluids	USCG HF	1 Braid of Steel Wire	Rubber	1.25 Inch	625 PSI (40 bar)	50 FT	50	Fluid Connector	Inch	Hose Products	Inch	1.25 Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-24	1 Limited Stock	652 in stock	$44.78/foot	FT	FT	-24	38 mm	1-1/2 inch	500 psi	51 mm	1.46 kg/m	Hose Products Division	43 Series	302 °F	PKR® Rubber	Lubricants	-50 °F	500 mm	MSHA Approved	Lubricating Oils	SAE J1942	1 Braid of Steel Wire	Rubber	1.5 Inch	500 PSI (30 bar)	50 FT	50	Fluid Connector	Inch	Hose Products	Inch	1.5 Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-32	Backordered	581 in stock	$183.08/foot	FT	FT	-32	51 mm	51 mm	2.6 MPa	64 mm	1.46 lb/ft	Hose Products Division	43 Series	150 °C	PKR® Rubber	Lubricants	-50 °F	630 mm	PKR® Rubber	Petroleum Base Hydraulic Fluids	SAE J1942	1 Braid of Steel Wire	Rubber	2 Inch	375 PSI (30 bar)	50 FT	50	Fluid Connector	Inch	Hose Products	Inch	2 Inch	Rubber	250 to 499 PSI (17 to 34 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-4	Backordered	353 in stock	$9.17/foot	FT	FT	-4	6 mm	1/4 inch	19.2 MPa	0.530 inch	0.16 lb/ft	Hose Products Division	43 Series	150 °C	PKR® Rubber	Lubricants	-50 °F	4 inch	PKR® Rubber	Lubricating Oils	ABS	1 Braid of Steel Wire	Rubber	0.25 Inch	2750 PSI (190 bar)	450 FT	450	Fluid Connector	Inch	Hose Products	Inch	0.25 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-6	Backordered	Backordered	$7.96/foot	FT	FT	-6	10 mm	10 mm	2250 psi	0.680 inch	0.23 lb/ft	Hose Products Division	43 Series	302 °F	PKR® Rubber	Petroleum Hydraulic Fluids	-50 °F	125 mm	PKR® Rubber	Petroleum Base Hydraulic Fluids	SAE 100R1, Type AT	1 Braid of Steel Wire	Rubber	0.375 Inch	2250 PSI (160 bar)	300 FT	300	Fluid Connector	Inch	Hose Products	Inch	0.375 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
426-8	Backordered	227 in stock	$11.09/foot	FT	FT	-8	12 mm	12.5 mm	2000 psi	0.810 inch	0.29 lb/ft	Hose Products Division	43 Series	150 °C	PKR® Rubber	Lubricants	-50 °F	7 inch	MSHA Approved	Petroleum Base Hydraulic Fluids	USCG HF	1 Braid of Steel Wire	Rubber	0.5 Inch	2000 PSI (140 bar)	400 FT	400	Fluid Connector	Inch	Hose Products	Inch	0.5 Inch	Rubber	2000 to 2999 PSI ( 138 to 207 bar)	Hydraulic	Medium	Hydraulic Industry Standard	426	High Temperature
