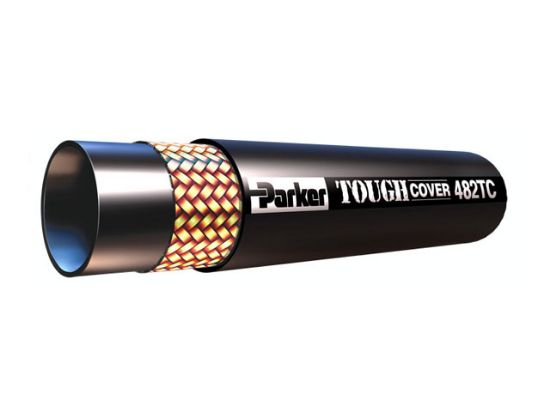

482TC-16 - Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose

Parker's 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:	Backordered
Partner Available:	147 in stock

SKU 482TC-16

$26.28/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Hose Cover Type	Tough Cover	Division	Hose Products Division
Application	Petroleum Base Hydraulic Fluids	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	1275 psi	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 1436, Type 1SN
Weight	0.63 lb/ft	Outside Diameter	36 mm
Cover Material	MSHA Approved	Inside Diameter	1 inch
Compatible Fitting	43 Series	Minimum Bend Radius	150 mm
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	1 Braid of Steel Wire
Nominal Hose Inside Diameter	25 mm	Material	Rubber
Pkg Qty/UOM	250 FT	Pkg Qty	250
UOM	FT	Inner Diameter	1 Inch
Working Pressure	1275 PSI (90 bar)	Mating Fitting Series	43, 42
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter	1 Inch
Inner Diameter Inch/mm	Inch	Material	Rubber
Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)	Application	Hydraulic
Hose Pressure Range	Medium	Hose Category	Hydraulic Industry Standard
Distinct Properties	Tough Cover	Mating End Fitting Series	43, 42
Series	482TC

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
