Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

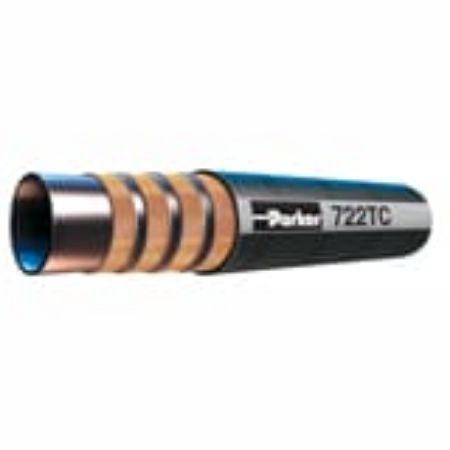

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility. The 722TC/ST hose is designed, built, and tested to meet ISO 3862-1 Type R12 / SAE J517 100R12 / SAE J1942 / EN 856 Type R12 performance specifications. Sizes range from 1-¼” to 2” in diameter with different cover options available for various markets.

Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse

Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• ISO 3862-1 Type R12 / SAE J517 100R12 / SAE J1942 / EN 856 Type R12 certifications
• Half SAE bend radius for ease of installation and low force to flex
• 2500-3000 PSI working pressure in different sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications

Applications:
• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:
• 43 series fittings (for -20 only)
• 71 series fittings (for -24 to -32)

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (size)	Hose Cover Type	Division	Application	Media	Maximum Operating Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Weight	Outside Diameter	Cover Material	Inside Diameter	Compatible Fitting	Minimum Bend Radius	Hose Inner Tube Material	Hose Reinforcement Material	Nominal Hose Inside Diameter
722ST-20	Backordered	170 in stock	$86.86/foot	FT	-20	SuperTough	Hose Products Division	Petroleum Base Hydraulic Fluids	Lubricants	3000 psi	257 °F	-40 °C	USCG HF	2.59 kg/m	1.840 inch	Synthetic Rubber	31.4 mm	43 Series	8-1/4 inch	Synthetic Rubber	4 Spirals of Steel Wire	31 mm
722ST-24	Backordered	29 in stock	$104.28/foot	FT	-24	SuperTough	Hose Products Division	Petroleum Base Hydraulic Fluids	Lubricants	17.5 MPa	257 °F	-40 °C	DNV	2.99 kg/m	53 mm	MSHA Approved	38 mm	71 Series	10 inch	Synthetic Rubber	4 Spirals of Steel Wire	38 mm
722ST-32	Backordered	Backordered	$119.19/foot	FT	-32	SuperTough	Hose Products Division	Lubricating Oils	Petroleum Hydraulic Fluids	17.5 MPa	257 °F	-40 °C	SAE J1942	2.75 lb/ft	66 mm	Synthetic Rubber	51 mm	71 Series	320 mm	Synthetic Rubber	4 Spirals of Steel Wire	51 mm
722TC-20	505 in stock	3397 in stock	$49.51/foot	FT	-20	ToughCover	Hose Products Division	Lubricating Oils	Lubricants	3000 psi	125 °C	-40 °F	SAE J1942	2.59 kg/m	46 mm	MSHA Approved	1-1/4 inch	43 Series	8-1/4 inch	Synthetic Rubber	4 Spirals of Steel Wire	31 mm
722TC-24	438 in stock	1104 in stock	$59.43/foot	FT	-24	ToughCover	Hose Products Division	Lubricating Oils	Petroleum Hydraulic Fluids	17.5 MPa	257 °F	-40 °F	USCG HF	2.01 lb/ft	53 mm	Synthetic Rubber	38 mm	71 Series	250 mm	Synthetic Rubber	4 Spirals of Steel Wire	38 mm
722TC-32	50 in stock	404 in stock	$88.26/foot	FT	-32	ToughCover	Hose Products Division	Lubricating Oils	Petroleum Hydraulic Fluids	17.5 MPa	257 °F	-40 °C	EN 856, Type R12	4.09 kg/m	66 mm	MSHA Approved	2 inch	71 Series	12-1/2 inch	Synthetic Rubber	4 Spirals of Steel Wire	51 mm
