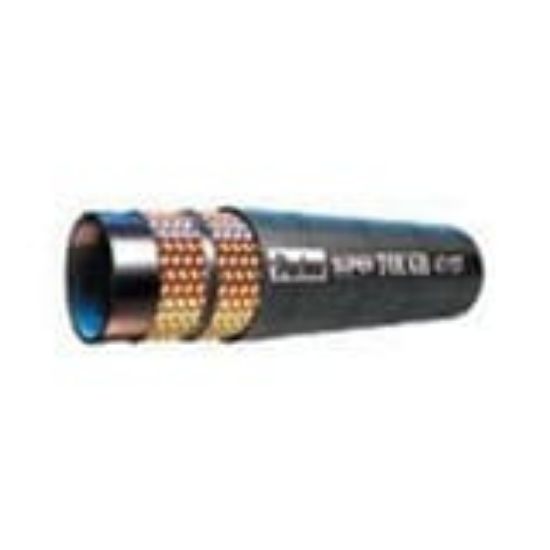

471ST-12 - Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose

Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	642 in stock

SKU 471ST-12

$25.99/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Hose Cover Type	Super Tough Cover	Media	Petroleum Hydraulic Fluids
Hose Inner Tube Material	Synthetic Rubber	Minimum Bend Radius	120 mm
Hose Reinforcement Material	2 Braids of Steel Wire	Minimum Operating Temperature	-40 °F
Cover Material	Synthetic Rubber Abrasion Resistant	Specifications Met	EN 857, Type 2SC
Application	Petroleum Base Hydraulic Fluids	Inside Diameter	19 mm
Maximum Operating Pressure	3125 psi	Outside Diameter	1.090 inch
Nominal Hose Inside Diameter	19 mm	Weight	0.58 lb/ft
Vacuum Pressure Rating	24 Inch-Hg	Division	Hose Products Division
Compatible Fitting	43 Series	Maximum Operating Temperature	100 °C

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
