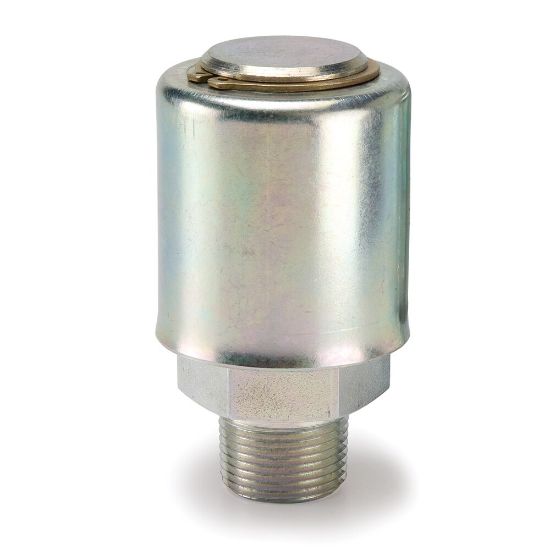

H1-05-12MP - Hydraulic Pressure/Vacuum Relief Valves - H1 / HM1 Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	1 Limited Stock

SKU H1-05-12MP

$235.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Special Options	na	Connection Thread Size (inch)	3/4 - 14
Thread Type	Male NPTF	Seal Material	Elastomeric
Division	Quick Coupling Division	Maximum Flow Rate	N/A
For Fluid Type	Hydraulic	Maximum Operating Temperature	250 °F
Vacuum Relief Pressure	0.3 psi	Minimum Operating Temperature	-40 °F
Pressure Control Range	5 psi	Actuation Type	Mechanical
Maximum Operating Pressure	60 psi	Body Material	Steel
Filter Type	Bronze, 10 micron

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
