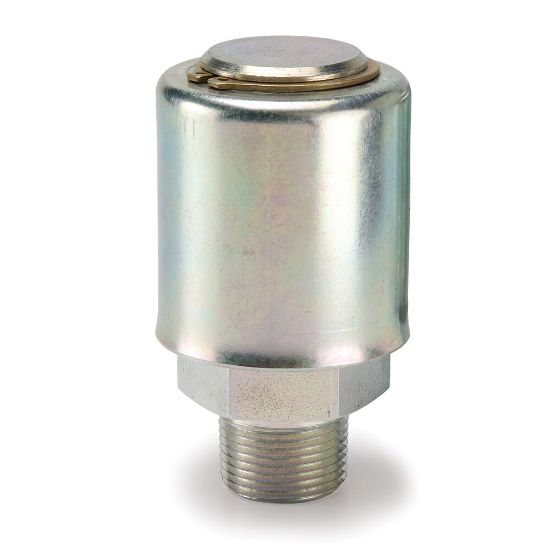

H1-05-6MP - Hydraulic Pressure/Vacuum Relief Valves - H1 / HM1 Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU H1-05-6MP

$189.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Special Options	na	Thread Type	Male NPTF
Connection Thread Size (inch)	3/8 - 18	Filter Type	Bronze, 10 micron
Maximum Flow Rate	N/A	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	For Fluid Type	Hydraulic
Seal Material	Elastomeric	Vacuum Relief Pressure	0.3 psi
Minimum Operating Temperature	-40 °F	Pressure Control Range	5 psi
Actuation Type	Mechanical	Maximum Operating Pressure	60 psi
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
