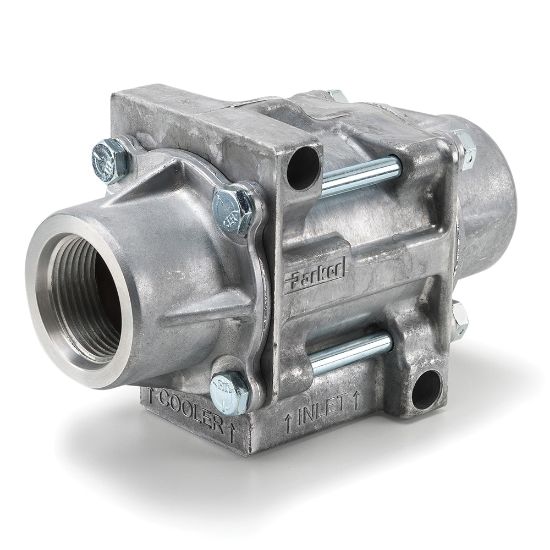

TH-1000-16FO-25 - Hydraulic Thermal Bypass Valves - TH Series

Parker's thermal bypass valves modulate fluid temperature by shifting return line flow through the cooler, or bypassing it directly to the reservoir.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU TH-1000-16FO-25

$158.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1 5/16 - 12 UN
Cracking Pressure (psi)	25	Shift Temperature (F)	120
Thread Type	Female SAE ORB	Function	Diverter
Maximum Operating Temperature	195 °F	Valve Port Size	1 inch
Seal Material	Elastomeric	Minimum Operating Temperature	-30 °F
Body Material	Aluminum	Actuation Type	Mechanical
Maximum Operating Pressure	250 psi	Flow Rate	60 Gal/min
For Fluid Type	Hydraulic Oil	Division	Quick Coupling Division
Maximum Flow Rate	60 Gal/min
