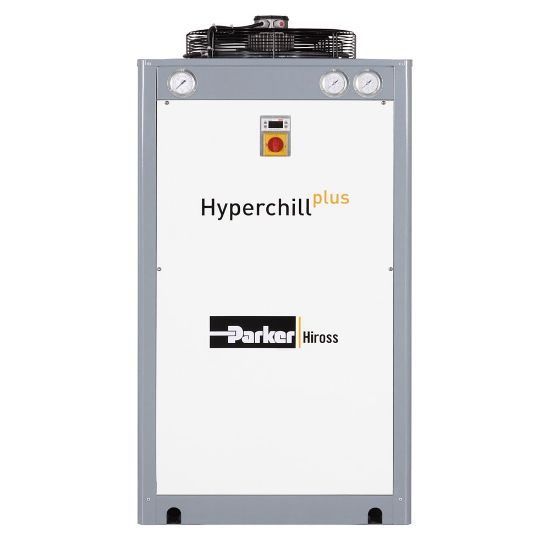

ICEP003-WASP5T0000001 - Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU ICEP003-WASP5T0000001

Products specifications

Attribute name	Attribute value
UOM	EA	Cooling Method	Air Cooled / Axial Fans
Water Sensor Option	No Low Water	Additional Protection Included	Without Antifreeze
Pump Type	Single Pump 5 bar	Hydraulic Circuit	With Tank
Operating Environment	No Low Ambient	Output Water Temperature Range	Without Close Control
Options	No Options Selected	Kit Type	Ambient Manual Fill Kit
Power Supply Voltage	230V/1Ph/50Hz	Maximum Cooling Capacity	3.3 kW @ 25°C (63°F)
Port Size	3/4 inch	Technology	Thermal and Power Management
Number of Axial Fans	1	Tank Capacity	15 L
Product Type	Production Process Water Chiller	Specifications Met	Machinery Directive 2006/42/EC
Ambient Temperature	118.4	Product Series	Hyperchill Plus
Refrigerant Type	R407C	Port Type	Threaded
Application	Precision Cooling of Low Viscosity Industrial Cooling Fluids	Product Style	Pressurized Closed Hydraulic Circuit
Brand	Hiross	Weight	80 kg
Ingress Protection Rating	IP33	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	41 to 86 °F	Depth	535 mm
Division	Gas Separation and Filtration Division EMEA	Height	801 mm
For Fluid Type	Water	Compressor Included	Hermetic Piston
Industry	Electronics	Width	29.7 inch
