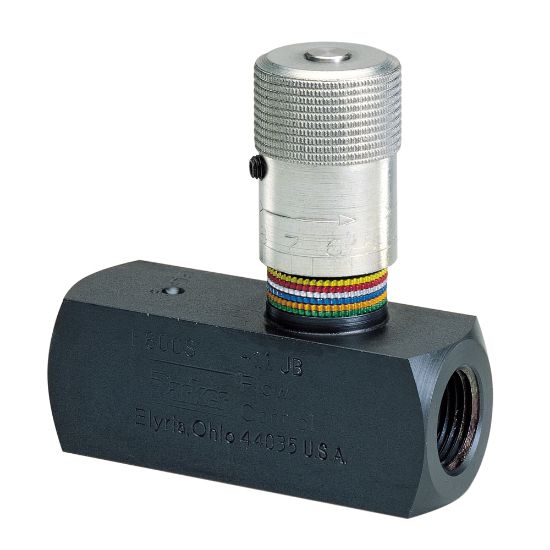

9F400SS4F - In-line Flow Control Valve – F Series

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU 9F400SS4F

$361.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Seal Material	Nitrile	Cracking Pressure (psi)	5
Connection Type	BSPP	Function	Flow Control
Configuration	InLine	Actuation Type	Manual
Connection Size	1/4"	Maximum Operating Temperature	+250
Minimum Operating Temperature	-40	Poppet Style	Metal
Maximum Operating Pressure (psi)	5000	Needle	Fine Metering
Maximum Flow Rate	5	Knob Option	Finger Screw
Connection Type	Female to Female	Maximum Operating Temperature	250 °F
Maximum Flow Rate	19 L/min	Division	Hydraulic Valve Systems Division
Actuation Type	Manual	Maximum Operating Pressure	5000 psi
Configuration	Inline	Body Material	Stainless Steel
Minimum Operating Temperature	-40 °F	Flow Rate	n/a
Brand	Colorflow	Connection Size	1/4 inch
Seal Material	Nitrile	Function	Flow Control
Media	Oil
