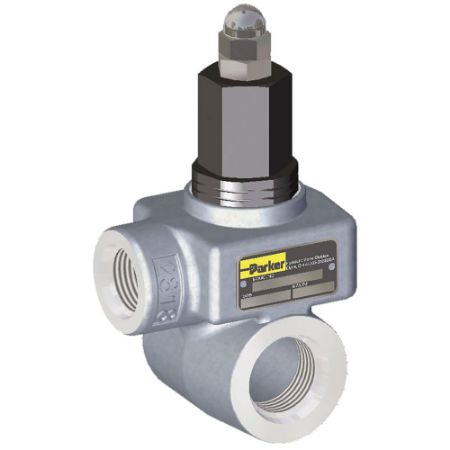

In-Line Mounted Differential Poppet Relief Valve – WJL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s WJL is a compact, low profile relief design that is either shim or screw adjustable from 500 to 2000 PSI. Typical applications include main system pressure limiting as well as actuator protection.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
| Action | SKU | Availability | Partner Available | Price | UOM | Adjustment Type | Pressure Relief Setting (psi) | Port Size | Weight | Maximum Operating Pressure | Body Material | Seal Material | Division | Connection Type | Maximum Flow Rate | For Fluid Type | Maximum Operating Temperature | Minimum Operating Temperature | Connection Size | Actuation Type | Product Style | Pressure Control Range | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WJL-10-1250 | Backordered | Backordered | $252.84/each | EA | Shim Adjustable | 500-1250 | SAE-10 | 1.4 kg | 210 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 500-1250 psi | In-Line | |
| WJL-10-2000 | Backordered | Backordered | $252.84/each | EA | Shim Adjustable | 1250-2000 | SAE-10 | 1.4 kg | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 1250-2000 psi | In-Line | |
| WJL-10-2500 | Backordered | Backordered | $252.84/each | EA | Shim Adjustable | 2000-2500 | SAE-10 | 1.4 kg | 210 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-10-A-1250 | Backordered | Backordered | $285.60/each | EA | Screw Adjustable | 500-1250 | SAE-10 | 3 lb | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 500-1250 psi | In-Line | |
| WJL-10-A-2000 | Backordered | Backordered | $285.60/each | EA | Screw Adjustable | 1250-2000 | SAE-10 | 1.4 kg | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 1250-2000 psi | In-Line | |
| WJL-10-A-2500 | Backordered | Backordered | $272.00/each | EA | Screw Adjustable | 2000-2500 | SAE-10 | 3 lb | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-10-A-3000 | Backordered | Backordered | $285.60/each | EA | Screw Adjustable | 2000-3000 | SAE-10 | 1.4 kg | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #10 | Hydraulic Pressure | In-Line Mounted Differential | 2000-3000 psi | In-Line | |
| WJL-12-2500 | Backordered | 1 Limited Stock | $339.61/each | EA | Shim Adjustable | 2000-2500 | SAE-12 | 3 lb | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #12 | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-12-3000 | Backordered | Backordered | $261.24/each | EA | Shim Adjustable | 2000-3000 | SAE-12 | 1.4 kg | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #12 | Hydraulic Pressure | In-Line Mounted Differential | 2000-3000 psi | In-Line | |
| WJL-12-A-2500 | Backordered | Backordered | $290.64/each | EA | Screw Adjustable | 2000-2500 | SAE-12 | 3 lb | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #12 | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-12-A-3000 | Backordered | Backordered | $290.64/each | EA | Screw Adjustable | 2000-3000 | SAE-12 | 3 lb | 3000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | SAE | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | #12 | Hydraulic Pressure | In-Line Mounted Differential | 2000-3000 psi | In-Line | |
| WJL-50-1250 | Backordered | Backordered | $279.72/each | EA | Shim Adjustable | 500-1250 | 1/2" NPT | 1.4 kg | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 500-1250 psi | In-Line | |
| WJL-50-2000 | Backordered | Backordered | $279.72/each | EA | Shim Adjustable | 1250-2000 | 1/2" NPT | 1.4 kg | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 1250-2000 psi | In-Line | |
| WJL-50-2500 | Backordered | Backordered | $266.40/each | EA | Shim Adjustable | 2000-2500 | 1/2" NPT | 1.4 kg | 2000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-50-3000 | Backordered | 1 Limited Stock | $363.64/each | EA | Shim Adjustable | 2000-3000 | 1/2" NPT | 3 lb | 2000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 2000-3000 psi | In-Line | |
| WJL-50-A-1250 | Backordered | Backordered | $309.12/each | EA | Screw Adjustable | 500-1250 | 1/2" NPT | 3 lb | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 500-1250 psi | In-Line | |
| WJL-50-A-2000 | Backordered | Backordered | $294.40/each | EA | Screw Adjustable | 1250-2000 | 1/2" NPT | 1.4 kg | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 1250-2000 psi | In-Line | |
| WJL-50-A-2500 | Backordered | Backordered | $309.12/each | EA | Screw Adjustable | 2000-2500 | 1/2" NPT | 1.4 kg | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 2000-2500 psi | In-Line | |
| WJL-50-A-3000 | Backordered | Backordered | $309.12/each | EA | Screw Adjustable | 2000-3000 | 1/2" NPT | 1.4 kg | 138 bar | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 1/2" | Hydraulic Pressure | In-Line Mounted Differential | 2000-3000 psi | In-Line | |
| WJL-75-2000 | Backordered | Backordered | $279.72/each | EA | Shim Adjustable | 1250-2000 | 3/4" NPT | 3 lb | 2000 psi | High Strength Cast Iron | Nitrile | Hydraulic Valve Systems Division | NPT | 25 Gal/min | Hydraulic Oil | +200 °F | -40 °F | 3/4" | Hydraulic Pressure | In-Line Mounted Differential | 1250-2000 psi | In-Line |
